Coil Conversion Kits

N70 Hilux Rear 05-14

A coil-converted Hilux offers a wide range of practical benefits for drivers, helping you to improve almost every aspect of your 4x4’s ride. Our Superior Engineering Hilux coil conversion kits are fully street legal and compliant, designed and built to the highest possible standards for everyday driving. These kits are supplied pre-fabricated for a quick and easy installation, meaning you can spend less time fitting parts and more time enjoying your high-quality 4x4 suspension.

You’ll also be provided with comprehensive instructions for your lift kit. Since we’ve covered all of the necessary testing, you’ll just need to find a qualified welder and suspension fitter to take care of the installation. Each Hilux coil conversion kit contains everything you’ll need for coil conversion, including all brackets, mounts, and control arms. The coils and shocks are not included by default, so that you can customise the ride, handling and lift height to suit your own specific needs.

All of these components together, equal more precise handling and a more comfortable ride for Hilux owners.

RRP $16,000 plus gst ($17,600)

The hilux is one of the worlds toughest 4wds available on the market. It does, however, have some points of issue. Suspension being one of them. This is where we step in.

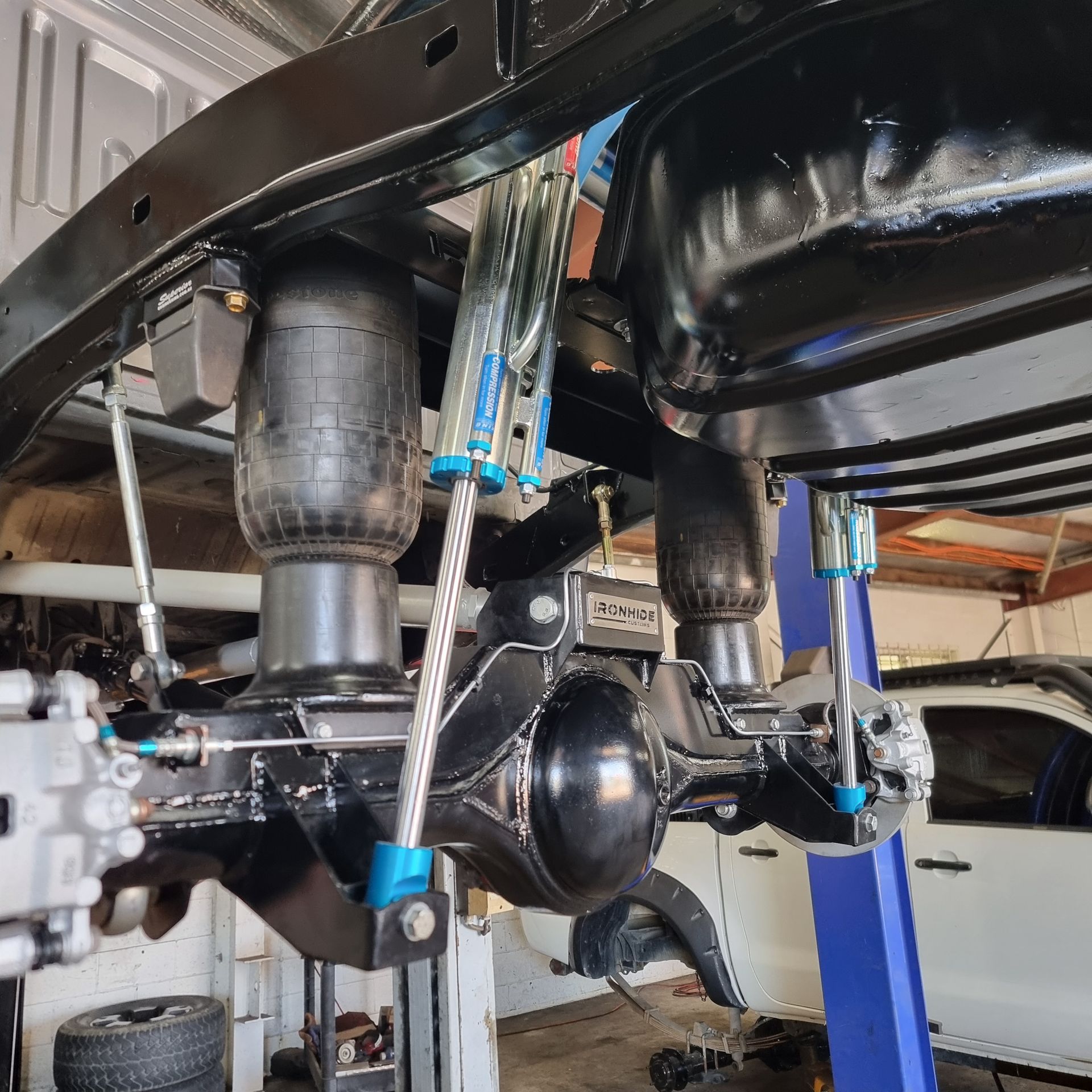

We offer a complete coil conversion system for the rear. Running a double triangulated 4 link rear for serious lateral stability and towing capacity. Our system is unlike any other with multiple variations available. Our kit also runs a 90 liter rear mounted fuel cell to give clearance for the trailing arms and better weight distribution over the rear axle. We offer loads of options listed below.

Coil and standard/remote reservoir shock
Coil and triple bypass shock
Coilover
Coilover and triple bypass shock
Airbag and standard/remote reservoir shock
Airbag and triple bypass shock
Hydraulic bumpstops
DFI torsional sway bar system
3 piece heim joints or factory rubber joints
Digital In-cab airbag control system w/air compressor

If we’re too far away, and you want to install this system yourself, we also offer the weld in kit instead. Qualified welder required. AS 1554.

Stage 1 kit includes – $7,700.00 inc gst.

Heavy duty fixed or adjustable lower trailing arms, heavy duty adjustable upper trailing arms running FK heims, all trailing arm mounts, chromoly rated shock pins, coil platform with spring drop out cones, Chassis bracing for inside and outside to suit GVM increase if needed, diff truss with coil seats and upper link mounts attached, 18mm grade 8.8 bolts with nyloc’s and washers for trailing arms, brake line mounts, manual brake valve, diff breather kit, fuel tank mounts, fuel tank adaptor.

This kit can either be adapted to the factory N70 housing, or upgrade to the Nissan Patrol GQ/GU rear housing. When choosing the Nissan patrol housing, a handbrake kit is needed. We also offer this as an upgrade. Its called the Toyota Hilux N70 handbrake kit and can be found in our products section.

We can also offer a Nissan patrol housing completely welded out with all mounts and brake lines, blasted and painted, ready for install for $3000. (exchange)

We can also offer a Toyota Hilux housing completely welded out with all mounts and brake lines, blasted and painted, ready for install for $3000. (exchange)

What’s needed to complete conversion -

Complete Nissan patrol GQ/GU patrol rear housing.
Or you can order a kit to fit existing hilux rear housing.
Dobinson/EFS rear coil springs (if using coils) to suit 105 series Landcruiser, 2-inch lift at medium rate (load rating will depend on vehicle, usually 200 to 350kg is a great medium rate) will give approx. 2 inches of lift.
Shocks to suit 3-inch lift 79 (rear). We recommend Superior, KINGS, FOX, Radflo, Comp shocks or Dobinson MRA but any shock will work as long as its suit 70 series rear.
Brake lines (5/16) to run from new brake valve to extended brake line mounted on the coil platform. Then from diff to split to left and right brake calipers.
Extended brake line.
Ironhide Abs kit if your vehicle has abs. $300.
Custom driveshaft if using Nissan patrol rear housing.
Nissan patrol GU rear fuel tank. 90 Liter.

Please contact for installation quotes and coilover/airbag/bypass/shock prices. Ironhide customs can complete all engineering and certification requirements in house for approx. $1,200. 2 to 3 inch lift with a maximum tyre size of 50mm over standard. (285 or 295)

BENEFITS

Enhanced Ride Comfort: Smoother and more comfortable ride compared to traditional leaf springs.
Improved Articulation: Coils allow for better axle articulation, enhancing the vehicle's ability to navigate challenging off-road terrains.
Better Handling and Stability: Coil rear kits result in improved handling and stability, providing better control during both on-road and off-road driving.
Adjustability: Coil kits offer adjustability, allowing users to fine-tune the suspension system to their specific preferences and requirements.
Reduced Axle Wrap: Coil springs can help minimize axle wrap, contributing to better traction and stability, especially during acceleration and deceleration.
Versatility: Easier to customize the suspension system for various driving conditions, making the vehicle more versatile.
Longevity: Our high-quality coil rear kits, when properly installed and maintained, can contribute to the longevity of the vehicle's suspension components.
